หมวดหมู่สินค้า: USB 2.0 Cable
รหัส : DT-5091
DTECH DT-5091 USB2.0 TO RS422/RS485 SERIAL ADAPTER
ราคา 600.00 บาท
28 มกราคม 2568
ผู้ชม 50 ผู้ชม
DTECH DT-5091

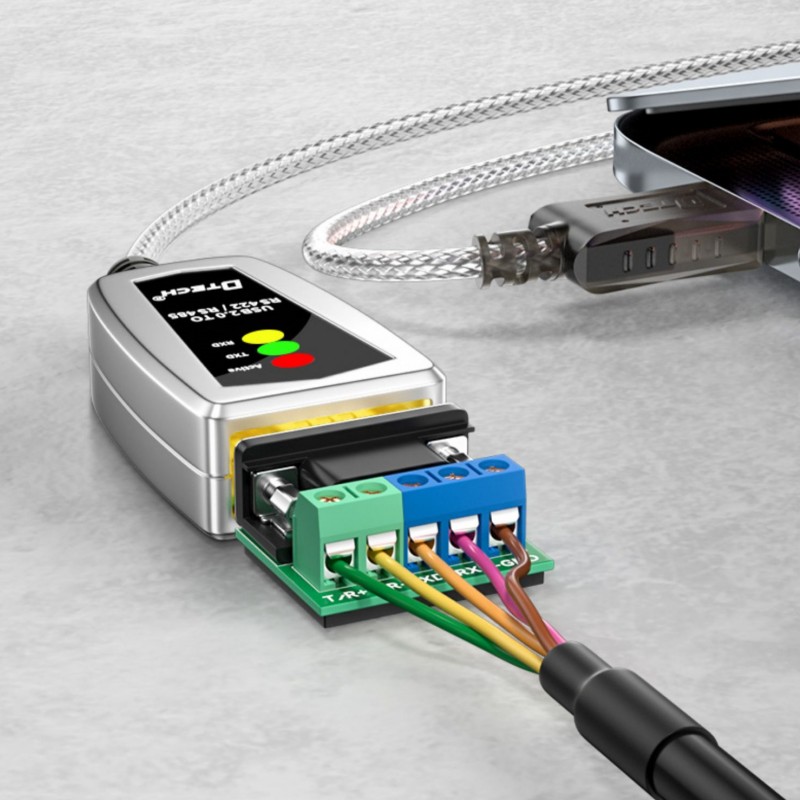

DB9 Serial Cable USB2.0 Male to RS422 RS485 Serial Port Converter Cable
สายยาว 40ซม. / รับประกัน 1ปี
ราคายังไม่รวมภาษี และค่าส่ง
| roduct Name | USB2.0 to RS422/485 Cable |
| Brand | DTECH |
| Model | DT-5019 |
| Compatibility Standards | The interface is compatible with EIA/TIA RS-485 and RS-422 standards |
| Product Chip | UK FTDI-FT232RL+sp485 dual chip |
| USB Signal | VCC, DATA+, DATA -, GND |
| RS-485 Signal | T/R+, T/R -, GND |
| RS-422 Signal | T/R+, T/R-, RXD+, RXD-, GND |
| DB9 Pin Signal | T/R+, T/R-, RXD+, RXD-, GND |
| Signal Indication | ①Power: red light ②Send data: green light ③Receive data: yellow light |
| Interface Description | ① USB A male; ② RS-485/RS-422 Interface: 9-hole terminal, DB9 |
| Communication Speed | 300bps~460800bps, automatic detection of serial port signal speed |
| Communication Distance | USB end: 0~5m; RS-485/RS-422 end: 0~1200m |
| Supported Systems | Windows 10, 8, 8.1, 7, Server 2008, XP, Vista, OS-X, Linux, and other systems |
| Power Supply Method | USB power supply |
| Application Scenarios | Industrial automation control systems, access control systems, power control systems, parking systems, attendance machines, industrial computers, PLC controllers, etc. |
| Warranty | 1 Year |
