DW-HDMI-200M

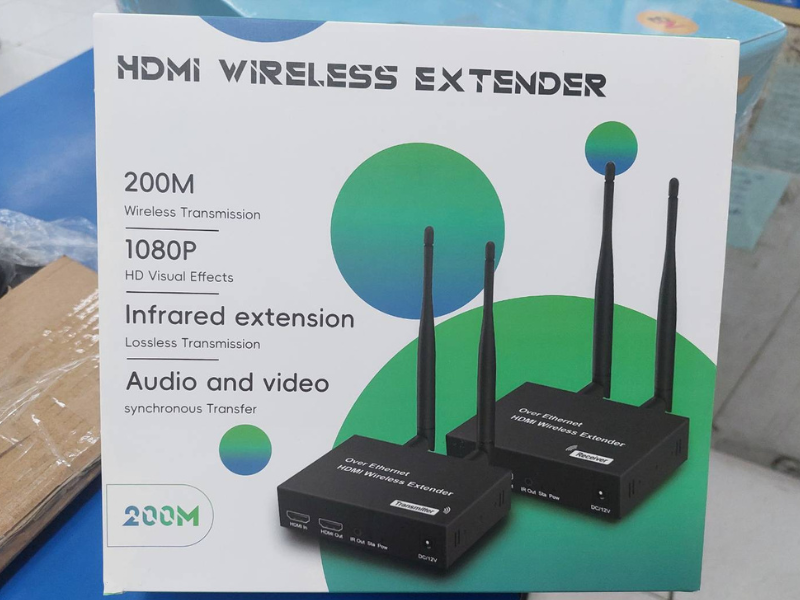

HDMI KVM Wireless Extender 1 ออก 1 200m (TX/RX)
ขยายสัญญาณ HDMI ผ่าน wireless ได้ไกล 200 เมตร (TX/RX)
รองรับความละเอียด 1080p มีช่อง HDMI loot out ที่อุปกรณ์ตัวส่ง
เพื่อเชื่อมต่อหน้าจอที่ต้นทาง ขยาย KVM พร้อม ports USB
ควบคุมเครื่อง PC ที่ฝั่งอุปกรณ์ตัวรับ รองรับการขยายสัญญาณ IR เพื่อควบคุมแหล่งสัญญาณภาพต้นทาง
Parameters |
Description |
|
Video |
HDMI and HDCP Versions |
HDMI V1.3, HDCP V1.2 |
Compressed format |
H.264 |
|
Maximum pixel clock |
165MHz |
|
Maximum data rate |
6.75Gbps |
|
Resolution |
Max 1920x1080p@60Hz |
|
Connector |
HDMI-A |
|
Impedance |
100Ω |
|
Maximum HDMI input/output range is recommended |
When 1920x1080p@60Hz, it's less than 3 meters |
|
Port |
Port |
3.5mm infrared ports |
Signal direction |
unidirectional |
|
Signal type |
Digitization |
|
Infrared frequency |
Digitization |
|
Wireless Network |
network wireless |
13dbm |
wireless standard 802.11 |
802.11 AC signal |
|
Direction |
unidirectional |
|
frequency |
5.8G |
|
Distance |
200M |
|
Others |
Power supply |
Adapter :DC12/1A power |
Power |
Transmitter 9W/receiver |
|
Operating temperature |
-5°C-+70°C |
|
Working humidity |
5% -90% |
|
Product size |
117*82*25mm |
